UR Hoist

UR Hoist

Redefining Precision and Efficiency in Material Handling Solutions.

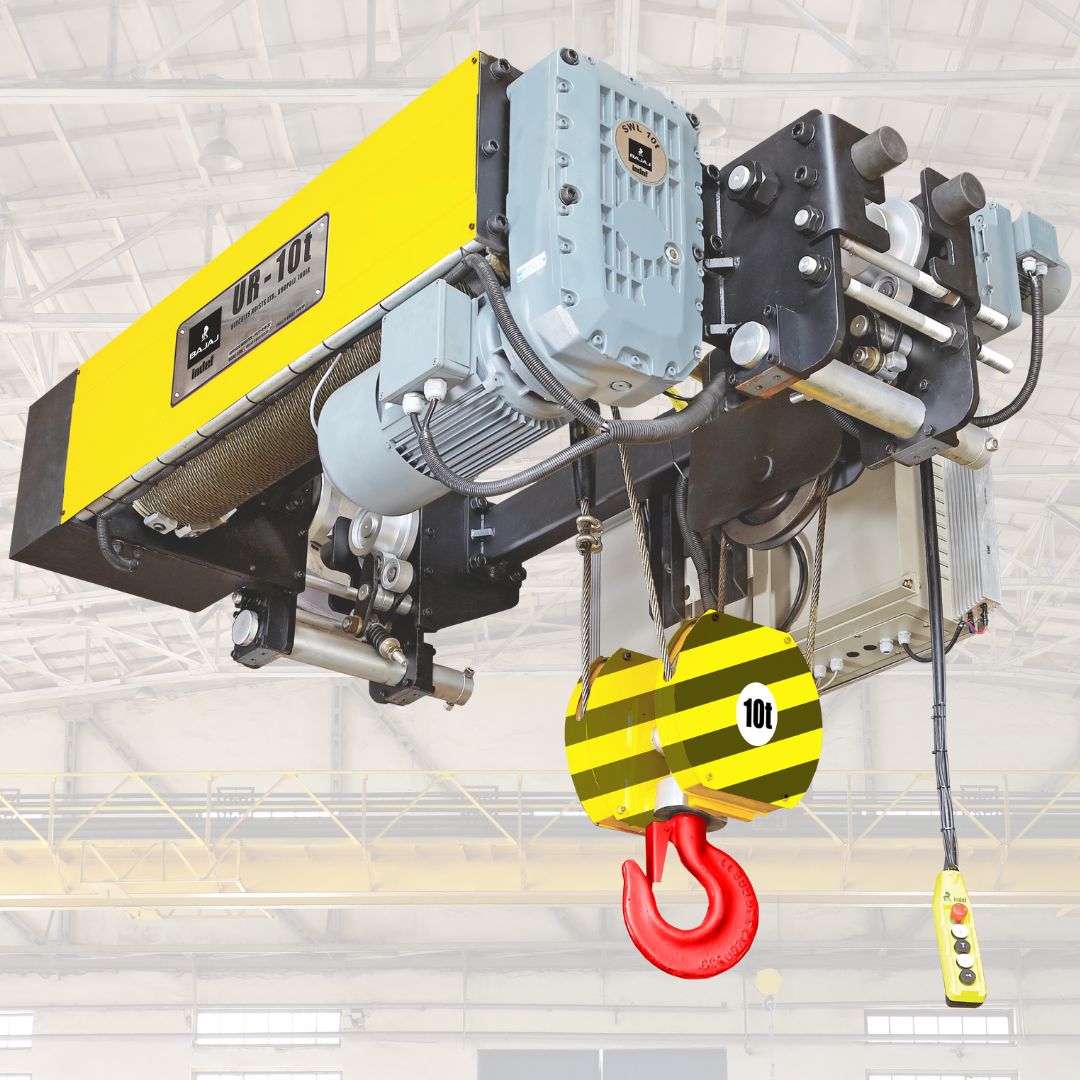

UR Hoist

The UR Wire Rope Hoist is a low noise, long lasting product with a lifetime lubricated gearbox and hardened and ground gears and complies with FEM/ISO standards.

The product comes with higher motor ratings, low running cost and low downtime and can support up to 40T capacity and 12m height of lift. These products come with an optimized modular design and are best suited for medium to heavy duty application and to increase the production capacity of the factory.









USPs


  • Comes with a standard offering of short headroom execution.
  • Gearbox is coupled directly with the drum and high-quality
    service ensures high efficiency.
  • High start stops per hour for demanding work application.
  • High-quality, long-lasting motors for economical use with
    a provision for thermocouple and encoder adaptation if
    required by the customer.
  • The hoist is available with VLVS® technology and is most
    suitable for the SGEOT and DGEOT cranes.
  • The trolley is suitable for Box Girder with a wide bottom
    flange and high span accommodation.

Features


  • SWL ranges from 1T to 40T and height of lift up to 12m.
  • Low headroom and wide range trolley hoist.
  • Specially designed, highly efficient German-built geared
    drive system.
  • Fact acting, fail-safe AC/DC brakes.
  • Electromechanical overload protection device.
  • 110V contractor control, drives are enclosed in IP55
    with insulation class F.
  • Precision rotary geared limit switch – 4 contact sets for cut-offs
    in emergencies.
  • Cross bar limit switch for cross travel operation.



Benefits

  • Offers precise handling of loads.
  • Highly efficient geared drive system provides 20% longer service life.
  • Low noise, low maintenance and compact.
  • Wear-resistant brakes mean no regular adjustments.
  • Hoist/travel drives can be replaced easily with dismantling the entire assembly – fast serviceability.
  • Lesser components translate to higher up-time.




Capacity Range 1 Ton to 40 Ton
Lifts 6 mtr to 12 mtr
Mountings Trolley Suspension Foot Mounted
Types Standard
